Weatherproof Series
Versions - Mobile Network GSM 4G / Analogue / VoIP SIP

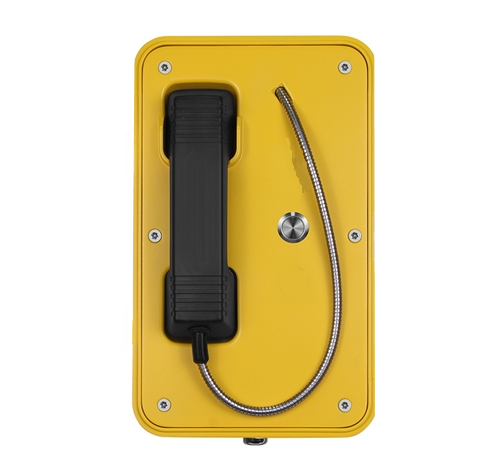

Model: A-JR103-SC
Call Us: 555-555-1234
JR100 Series IP66-IP67 rated weatherproof industrial telephones for speed-dialling or hotline functionality. Wall, pole or pillar mounting, the phones are incredibly robust and offer optimum reliability along with a long-life expectancy, the M.T.B.F. calculated in excess of 50,000 (in use) hours. Perfect for Factories, Warehouses, Ports, Plants, Bridges, Tunnels, costal, Airports, Train Stations, Stadiums and Arenas
----- Silk Printing and Permanent Vinyl Labels -----
FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.
Simply tell us what you want and we will provide you with the best solution.
Weatherproof Series
Weatherproof, Vandal proof and Reliable, just a few reasons why Weatherproof Series Telephones reach out to a large range of industries requiring service, emergency or backup communications.
Version Availability
Available in the following models: Analogue, powered analogue line, VoIP SIP, powered PoE (or 12Vdc PSU), 4G Moblie Network (Micro SIM Card) Powered 12Vdc PSU.
Multi Button Auto Dial Phone
With a non-volatile memory, the metal call buttons are programmable for speed dialling. To receive a call, simply lift magnetic handset off the receiver.
Weatherproof Telephone for Extreme Conditions
Weatherproof Series Telephones for application within a diverse range of temperatures -25 to +70 deg C. The IP66 Watertight Rating conforms to EN60529, guarantees optimum performance in uncompromising environments, even when the door is open. IP67 dust / water ingress version is available on-demand.
External features designed to alleviate opportunity for vandalism
The circuitry is fully contained within a solid sealed cast aluminium case with vandal proof external features that include anti-tamper screws, steel armoured handset cable with tensile force up to 200kg, metal call buttons, a heavy-duty ABS handset and magnetic receiver.
Loud and Clear Full Duplex Communications
The loud ringer is adjustable up to 90dB (VoIP / 4G) and 80dB (Analogue). Optical and acoustic external ringers (115dB@1m) / repeaters and LED flashing beacons for use in extreme ambient noise zones are additionally available.
Contact Relay's
Two dry contact relays are available on demand for functions such as door or gate opening, sounding an alarm, turning on a securiy device, warning light or alarm.
Disable Assistance Fitted Hearing Loop Technology
Hearing induction loop optionally available on demand to assist hard of hearing users, this is compatible with the "T" hearing aid setting. The loop is located behind the telephone face plate and powered 12-24Vdc from PSU
Simple to Setup and Maintain
Programming by way of DTMF for analogue networks and powered by analogue line. The VoIP SIP version is powered by PoE and configured by web interface. 4G GSM versions are powered by 12Vdc mains adaptor and setup remotely by SMS text. Functions such as status reporting, maximum call time between (1-250 minutes), remote broadcasting are also available on-demand.
Choice of Colours
Industrial high-performance epoxy powder coating in RAL1023 yellow as standard. Other RAL colours are available up-on request.
Need a Self-Powering or Free-Standing Pillars
4G GSM Communications with Solar-Powered free-standing pillars or column fixing kits. Check out our Solar Power and free-standing pillars and post options
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Analogue Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | Idle:1.5W-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full Duplex |
| Ringer volume | 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC or Rechargeable Battery |
| Power Consumption | Idle:0.3W - Active: 1.5W |
| Communication Type | Full Duplex |
| Ringer Volume | 90~95dB(A) at a distance of 1m |
| Program Method | Remote Programming by SMS |
| Frequency | |
| A version: | Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| E version | Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| J version | Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient Conditions | |
| Protection Type | IP67, Conforms to EN60529 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Unit Size: | 339 *246 *126(mm) |
| Gross Weight | 7KG |
