Weatherproof Series
Versions - Mobile Network GSM 4G / Analogue / VoIP SIP

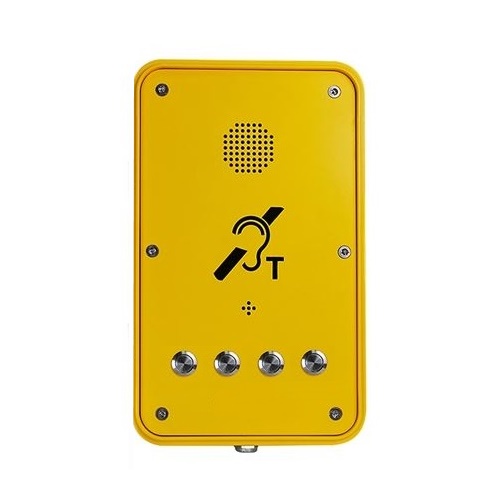

Model: A-JR104-4B
Call Us: 555-555-1234
Industrial Hands-Free Auto-Dialling Telephone
IP66 Watertight, Vandal Resistant, Non-Corrosive and Rugged
----- Silk Printing and Permanent Vinyl Labels -----
FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.
Simply tell us what you want and we will provide you with the best solution.
Weatherproof Series
Weatherproof, Vandal proof and Reliable, just a few reasons why Weatherproof Series Telephones reach out to a large selection of industries that require service, emergency or backup communications.
Version Availability
Available in the following models: Analogue, powered analogue line, VoIP SIP, powered PoE (or 12Vdc PSU), 4G Moblie Network (Micro SIM Card) Powered 12Vdc PSU.
Weatherproof IP66 as Standard
Weatherproof Series Telephones for application within a diverse range of temperatures -25 to +70 deg C. The IP66 Watertight Rating conforms to EN60529, guarantees optimum performance in uncompromising environments, even when the door is open. IP67 dust / water ingress version is available on-demand
Loud and Clear Full Duplex Communications
The loud ringer is adjustable up to 90dB (VoIP / 4G) and 80dB (Analogue). Optical and acoustic external ringers (115dB@1m) / repeaters and LED flashing beacons for use in extreme ambient noise zones are additionally available.
External features designed to alleviate opportunity for vandalism
The circuitry is fully contained within a solid sealed cast aluminium case with vandal proof external features and anti-tamper screws, supplied complete with mounting bars and tamper screw release key.
Contact Relay's
Two dry contact relays are available on demand for functions such as door or gate opening, sounding an alarm, turning on a securiy device, warning light or alarm.
Disable Assistance Fitted Hearing Loop Technology
Hearing induction loop optionally available on demand to assist hard of hearing users, this is compatible with the "T" hearing aid setting. The loop is located behind the telephone face plate and powered 12Vdc from PSU
Simple to Setup and Maintain
Programming by way of DTMF for analogue networks and powered by analogue line. The VoIP SIP version is powered by PoE and configured by web interface. 4G GSM versions are powered by 12Vdc mains adaptor and setup remotely by SMS text. Message status reporting also available to a dedicated mobile number (SMS), this is very simple to setup and manage. Option available to set the maximum call time between 1-250 minutes.
Choice of Colours
Industrial high-performance epoxy powder coating in RAL1023 yellow as standard. Other RAL colours are available up-on demand
Need a Self-Powering or Free-Standing Pillars
4G GSM Communications with Solar-Powered free-standing pillars or column fixing kits. Check out our Solar Power and free-standing pillars and post options
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Analogue Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 90dB(A) at 1m. 110dB(A) at 1m with external horn speaker |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | Idle:1.5W-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711A/u, G.7231 high/low, G.729, G.722,G.726 |
| Echo Cancellation | Echo cancellation: Support G.168 and hand-free supports 96ms |
| Communication Type | Full Duplex |
| Ringer volume | 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC or Rechargeable Battery |
| Power Consumption | Idle:0.3W - Active: 1.5W |
| Communication Type | Full Duplex |
| Ringer Volume | 90~95dB(A) at a distance of 1m |
| Program Method | Remote Programming by SMS |
| Frequency | |
| A version: | Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| E version | Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| J version | Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient Conditions | |
| Protection Type | IP66, Conforms to EN60529 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Unit Size: | 204 *334 *74((mm) |
| Gross Weight | 5KG |
