Video Help Point Intercom
Versions - 4G LTE / VoIP SIP
Model: A-JR213-V-2B
Unit Size: 430 x 258 x 70 (mm), Weight: 4 KG Mounting: On-Wall
Call Us: 555-555-1234
The Customer Assistance, Information and Emergency Solution

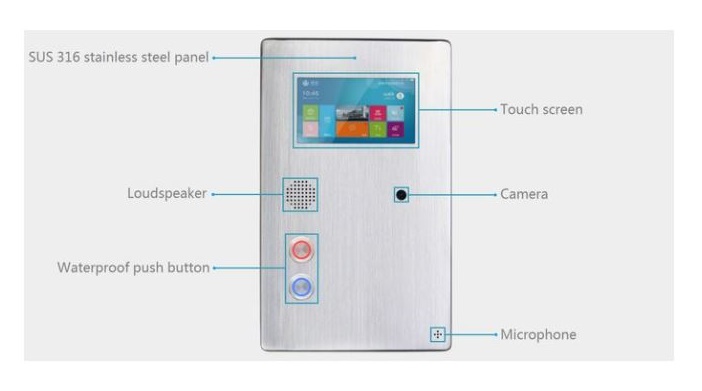

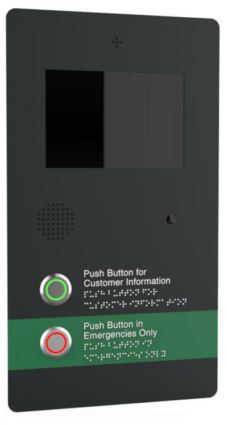

A-JR213-V-2B video help point intercom with LED lit autodial call buttons, includes a built-in HD camera for direct video communications. It is possible to combine the use of the A-JR313-V-2B wall mounted intercom for both emergency assistance and general customer information and door opening with face recognition technology. With integration of the touch screen display to Android based applications, this providing a useful information assistance tool
The AJR213-V-2B combines both an attractive modern design and sleek look, whilst ensuring industrial resilience to the highest standard, this includes water / dust resistance and vandal resistance throughout.
Ideal for; Rail & Underground Stations, Hospitals, Stadiums, ships, Universities and Campus, Shopping Malls, Service - Door Opening, External Security etc.
----- Silk Printing and Permanent Vinyl Labels -----
FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.
Simply tell us what you want and we will provide you with the best solution.
Hands-Free Video Call Point, push-to-call, auto-dialling, with 2 LED call buttons
Information, Assistance, Emergency and Door Entry Intercom with face recognition: Supports Baidu / Yuemian face recognition, 2 Relays (optional), relays can be used for other applications. full colour touch screen and HD camera, available in the following models; VoIP SIP or 4G LTE (SIM Card)
IP54 Watertight, Durable with Quality Audio
The telephone is housed within a stainless-steel Watertight IP54 enclosure. Versatile operating temperatures ranging from -30 to +65 deg C. Quality clear audio with a loud ringer, adjustable up to 95dB (VoIP / GSM). Additional external ringers / repeaters and LED flashing beacons can be specified for use with external relays. The weatherproof IP54 rating conforms to EN60529, guarantees optimum performance in harsh environments. Full duplex, high quality echo cancelling microphone, settings adjustable on installation.
Robust and Vandal Resistant
Housed within sold SUS 316 Stainless-Steel Casing, a unique robust external telephone compromising of anti-tamper fixings and metal / LED call buttons
Option for Relays
Up to 2 internal relays are available to the SIP / 4G LTE version (on demand). Remote users can enter PIN codes via telephone keypad for door / gate open, sound an alarm, switch on a light etc...
Disable Assistance Fitted Hearing Loop Technology
Induction Loop Technology optionally fitted on request to assist hard of hearing users. Braille button labels also optionally available
Simple to Setup and Maintain
Powered by PoE with or 12Vdc Mains Adaptor and setup remotely by SMS Text (4G LTE) or web interface (SIP). Message Status Reporting also available, this is very simple to setup and manage.
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| SIP Version | |
|---|---|
| Power Supply | PoE or 12Vdc PSU |
| HD Video | Video supports H.264, H.263 encoding |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711A/u, G.7231 high/low, G.729, G.722,G.726 |
| Echo Cancellation | DSP Echo cancellation: Support G.168 and hand-free supports 96ms |
| Communication Type | Full Duplex |
| Ringer volume | 95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| Ambient Conditions | |
| Protection Type | IP54, Conforms to EN60529 |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +75°C |
| Unit Size | 420 *258 *70 (mm) |
| Carton Size | 500 *320 *80 (mm) |
| Net Weight: | 4 KG |
| Gross Weight: | 4.5 KG |
Customer Information Point - Wall Mounted Video Hotlines - VoIP Hotlines - Face Recognition Door Entry Intercoms - Door Entry Telephones - Emergency Intercoms - Robust Intercoms - Wall Mounted Hotlines - Touch Screen Information Point - Security Intercom
