Weatherproof Series
Versions - Wireless 3G GSM / Analogue / VoIP SIP
Model: AJR101-CB-H
Call Us: 555-555-1234

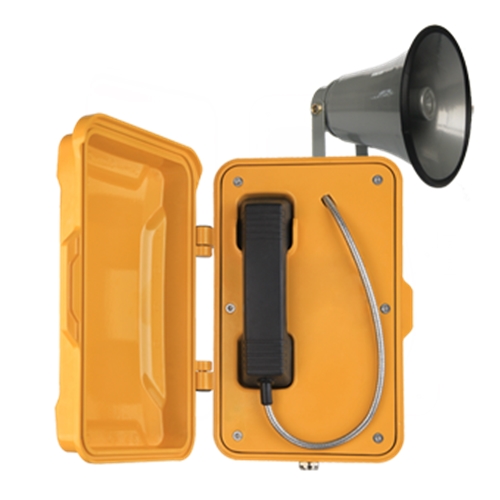

Lift-to-Call Hotline Telephone with Horn Ringer, Repeater and Beacon
IP66 Weatherproof, Vandal Resistant, Anti-Corrosive and Rugged
Broadcasting Features
Remote Call Broadcasting and Loud Ringer
Telephone settings provide option to auto answer and page broadcast through the horn from the external call, or to amplify the general call ringing (up to 110dB / optional 1-9 rings). Designed for emergency and industrial application in high noise environments. The horn is an external component wired, powered directly from the telephone, designed for wall mounting.
----- Silk Printing and Permanent Vinyl Labels -----
FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.
Simply tell us what you want and we will provide you with the best solution.
Weatherproof Series
Weatherproof, Vandal proof and Reliable, just a few reasons why Weatherproof Series Telephones reach out to a large range of industries requiring service, emergency or backup communications.
Emergency Hotline
Available to analogue lined, VoIP SIP PoE, 3G or 4G (SIM) and programmable for speed dialling upto 4 number in sequence (available on request) with a non-volatile memory. The hotlines simple functionality is ideal for emergency and service use. Simply lift handset from the magnetic receiver to autodial the pre-stored number or lift handset to receive inbound call.
Weatherproof Telephone with Door Enclosure - IP67 as Standard
Weatherproof Series Telephones for application within a diverse temperatures -25 to +70 deg C. The loud ringer is adjustable up to 95dB (VoIP / GSM) and 80DB (Analogue). Additional external ringers / repeaters and LED flashing beacons for use in extreme ambient noise zones are available. The IP67 Watertight Rating conforms to EN60529, guarantees optimum performance in uncompromising environments. Full Duplex, High Quality Acoustic Properties, adjustable during installation or remotely; DTMF, Web Interface or Text Message (Version Dependent).
External features designed to alleviate opportunity for vandalism
The circuitry is fully contained within a solid sealed cast aluminium case with vandal proof external features inclusive of anti-tamper screws, steel armoured handset cable, a heavy-duty handset and metal magnetic receiver.
Internal Relay's
Up to 2 internal relays are available to the VoIP telephone as standard, however the Analogue Version can be customised to include 2 relays upon request. Remote users can enter PIN codes via telephone keypad for remote actions, such as, door / gate open, sound an alarm, switch on a camera / light etc.
Disable Assistance Fitted Hearing Loop Technology
Induction Loop Technology is fitted to the telephone handset to provide assistance for hard of hearing users.
Simple to Setup and Maintain
Programming by way of DTMF for analogue networks and powered by analogue line. The VoIP SIP version is powered by PoE. 3G or 4G GSM versions are powered by 12V mains adaptor and setup remotely by SMS text. Message status reporting also available to a dedicated mobile number (SMS), this is very simple to setup and manage. Options available to set the maximum call time between 1-250 minutes.
Choice of Colours
Industrial high-performance epoxy powder coating in RAL1023 yellow as standard. Other RAL colours are available up-on request.
Need a Self-Powering or Free-Standing Pillar
Self-Powering and Free-Standing options available. Option for 30-60 day rechargeable battery powered with external battery box or mounted to a JRTel Pillar or Post. 3G Solar Powered Towers also available
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Analogue Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | Idle:1.5W-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full Duplex |
| Ringer volume | 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC or Rechargeable Battery |
| Power Consumption | Idle:0.3W - Active: 1.5W |
| Communication Type | Full Duplex |
| Ringer Volume | 90~95dB(A) at a distance of 1m |
| Program Method | Remote Programming by SMS |
| Frequency | |
| A version: | Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| E version | Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| J version | Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient Conditions | |
| Protection Type | IP67, Conforms to EN60529 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Unit Size: | 339 *246 *126(mm) |
| Gross Weight | 7KG |
