Public, Industrial and Emergency Telephone Communications

Special Assistance IP65 Weatherproof Telephone Help Point

Hearing Induction Loop - Dual Autodial Buttons - Camera

Call Us: 555-555-1234

Vandal Resistant, Anti-Corrosive, IP65 Weatherproof

VoIP SIP PoE, 3G GSM, or Analogue, Line Powered

Floor Mounted Assistance Call Point

Specialist Disability Assistance

Model: AJR315-SCS

  • Wireless 3G, Analogue or VoIP SIP
  • Powered PoE, Analogue Line or 12v DC Mains
  • Brushed Stainless Steel Call Point
  • Solid Robust Non-Corrosive Steel Stand
  • Weather Protection Rated IP65
  • Two Metal Autodialling Call Buttons with LED surround
  • Simple Installation with Tamper Proof Fixings
  • Non-volatile Memory, Programmable for Speed-Dialling
  • Disabled Assistance - Hearing Induction Loop
  • Optional Integrated Camera
  • Easy Reach Call Button and Microphone - Wheel Chairs Assist
  • Option for Braille Etchings
  • Choice of Customised Labelling and Stand Colour
  • IP66, RoSH, CE & FCC Compliant - 24 Month Warranty


  • Airports - Hospitals - Shopping Centres - Universities - Train Stations - Metro Stations - Arenas - Stadiums

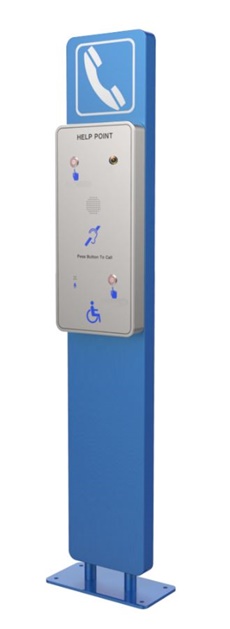

    AJR315-sc disability assistance telephone help and infomation point auto dialling with hearing loop. Vandalproof and weatherproof IP65
    train station camera call point

    ----- Silk Printing and Permanent Vinyl Labels -----

    FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.

    Simply tell us what you want and we will provide you with the best solution.

    customised printing or permanent logos onto telephones and call points

    Disability Assistance

    The LED call buttons are uniquely placed with a microphone for low accessibility of wheel chairs users, with option for an integrated hearing induction loop for hard of hearing customers. Option for Braille and integrated wide angled camera - providing a secure 24/7 live link.

    IP65 Weather Resistant

    With an operating temperature range -30 to +70 deg. C, the weatherproof IP65 rating conforms to EN60529, for internal or external application.

    Vandal Proof

     Housed within robust stainless-steel body with anti-vandal LED red and green metal call buttons, etched graphics and with tamper-proof fixings. The stand body is made from thick rolled steel, designed to withstand vandalism.

    Floor Mounting

    Option to fit directly into the ground with four foundation or expansion bolts (not supplied). The frame is supplied with four bolt holes pre-drilled into the base bracket.

    Choice of Colours

    The call point is supplied as standard with a brushed stainless-steel finish and stand painted blue, however, options also available for red, yellow or grey. Option to silk print onto the body of the call point

    24 Months Warranty

    24-months Manufacturer Defect Warranty. Extended warranty available on request.

    Versions

    The 3G version is great for placement where there is no Analogue Telephone Network (PSTN) or VoIP SIP Network. The telephone can be configured and manged remotely through SMS application with a standard 3G Sim Card. The call point is powered by mains through a 12V DC Mains adaptor.

    The Analogue Version is line powered through line (PSTN & PABX) or by DC Mains Supply and Programmed by DTMF (Duel Tone Multi Frequency).

    VoIP SIP Version through PBX and powered by PoE or mains supply and configured on IP connection.

    Compliance

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Analogue Telephone Network
    Dialling  MF (tone)
    Supply Current Drawn from telephone line
     Lightning / Transients Protection to ITU-T k.21 enhanced levels
    Programming Can be programmed as an auto-dial phone
    SIP Version
    Power Supply PoE or 12V - 24V DC
    Port WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX
    LAN: 10/100Base- T RJ-45 for PC, Auto MDIX
    Power Consumption Idle:1.5W/ Active:1.8W
    Communication Type Full Duplex
     Voice Features Echo cancellation: Support G.168 and hands-free can support 96ms
      Supports full duplex
      SIP support SIP domain, SIP authentication (none basic, MD5), DNS name of server
      DTMF:SIP info, DTMF Relay,RFC2833
      Call control features: Flexible dial map, supports hot-line

    Network Features WAN/LAN: support Bridge mode
      Supports static IP address
      Supports DHCP get IP on WAN port
    Supports VLAN
      Supports web config
    Camera
    Video Codec H.264 HP、MPEG4 SP、MJPEG
    Resolution Ratio 1,280*720@20fps、
    Sensitivity 0.5Lux,1.0V/lux-sec (550nm)
    Viewing Angle 135'(H),109'(V)
    Video Compression Output 16Kbps - 2Mbps FPS:10-30fps
    D-Range 71dB(SNR MAX = 42.3dB
    Ambient Conditions
    Protection Type IP65, Conforms to EN60529
    Operating Temperature -30°C to +70°C
    Storage Temperature -40°C to +75°C
    Unit size: 1800*300 *60(mm)
    Gross weight 50 KG
    Ringing Tone Shrill warble tone 90 dBA @1 metre
    M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours in use
    •
