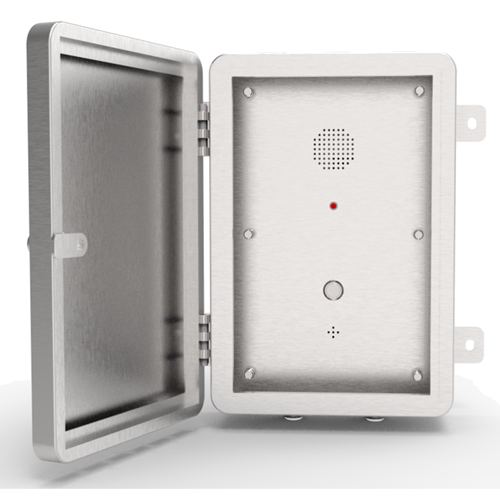

Stainless-Steel Wall Mounted Heavy Duty Intercom

Industrial Food Production Factory, IP66 protection

Call Us: 555-555-1234

Special Environment Intercom

Watertight IP66, Non-Corrosive Stainless-Steel

Call Points and Intercoms

Versions - Analogue / VoIP SIP / Point-to-Point Intercom

Model: A-JR108-SC

Unit Size: 250 x 370 x 135 (mm), Weight: 7KG Mounting: Wall Mounted

  • Single Metal Call Buttons Programmable for PTC Speed Dialling
  • Non-Corrosive Stainless-Steel Housing
  • Robust and Vandal Resistant
  • Rated IP66 Even with Open Door
  • Version: SIP, Powered PoE or Analogue Line Powered
  • Point-to-Point Solution also available
  • Hands-Free Loud and Clear Operation
  • Simple Installation with Tamper Proof Fixings
  • Non-Volatile Memory, Programmable for Speed-Dialling
  • Remote programming Web Interface or DTMF - Version Dependant
  • Internal Relays Available On-Demand
  • Four Dial-in-Sequence Numbers On-Demand
  • Choice of Customised Labelling
  • RoSH, CE & FCC Compliant - 24 Month Warranty

    • A-JR108-SC dimensions
    A-JR108-SC with door closed
    ALT NAME

    This model is available for the following applications;

  • Hands-free Telephone versions: Analogue, line powered, VoIP SIP PoE or GSM / 3G / 4G Wireless Network
  • Point-to-Point Intercom No centralised system, powered individually or centrally, push to call, push to receive call (see diagram)

    • The A-JR108-SC intercom is ideal for locations that are cleaned regularly using harsh chemical cleaning agents and high pressure water jets as the door can be latched closed during this process for further protection. The intercom is IP66 rated when the door is open. A smooth inner face plate with flush call button is easy to wipe clean. Made using a high grade stainless-steel to ensure non-corrosive properties are maintained.

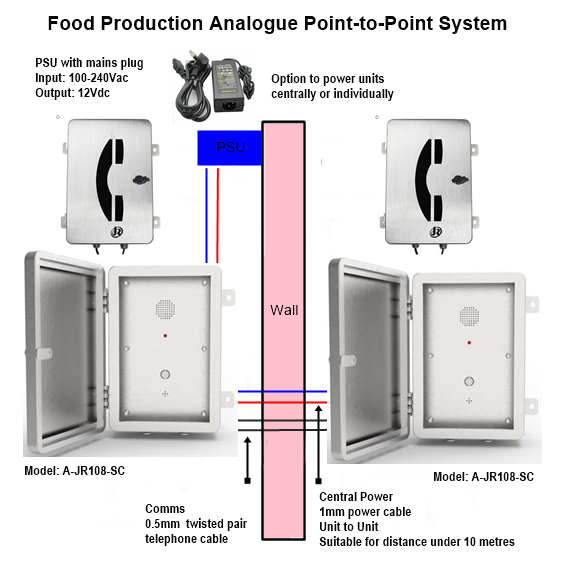

    ----- Point-to-Point Solutions-----

    Example of our point-to-point capabilities

    Professional IP66 water ingress rated, heavy-duty stainless-steel intercoms, suitable for noisy areas. The stainless-steel body is robust and non-corrosive. The system does not need a centralized switching unit, but a simple telephone cable (0,5mm twisted pair) where all the stations are connected in parallel. Each unit is individually, or centrally powered at 12Vdc. The A-JR108-SC intercom is of industrial standard and designed for arduous use within environments subject to harsh cleaning with use water jets and chemicals.

    customised food production intercom water and chemical resistant

    Functionality

    Push to call (PTC), press call button of intercom 1 to call intercom 2, a loud ringing noise will be heard until the intercom is answered (85~90dB@1m typical) with loud and clear two-way communications. Each intercom can make, receive, and end calls. Optional Extras

    For high noise areas, the JR002 device is a flashing beacon and ringer, this can be supplied as an extra for both visual alerting and increased ringing to 115dB@1m.

    Optional Versions
  • Hands-Free Call Point - Push-to-Call Autodialling, available in the following models; Analogue, VoIP SIP or 4G, 3G GSM Wireless Network (SIM Card).
  • Door Entry Intercom, with up to 2 Relays, relays can be used for other applications. VoIP or Analogue solutions available
  • Point-to-Point Intercom - No Centralised Governance or System Required. IP intercom or analogue intercom (dependant on requirement), Built with a smart intercom chip and wired in parallel Point-to-Point. This is a customised solution, on demand
    • Watertight and Durable

    The telephone is housed within a stainless-steel Watertight IP66 enclosure. Intercoms and P2P Series Telephones are designed for use in adverse temperatures ranging from -40 to +70 deg C. The weatherproof IP66 rating conforms to EN60529, guarantees optimum performance in uncompromising environments. The IP66 rating is not compromised when the door is open.

    Quality Communications
    Loud and clear audio with a loud ringer, up to 90~95dB (VoIP/ GSM Versions) and 80~90dB (Analogue). Additional external ringers / repeaters and LED flashing beacons can be specified for use in extreme ambient noise zones.  Full Duplex, communications, high quality microphone and speaker

    Robust and Vandal Resistant

    Housed within sold Stainless-Steel Casing, a unique robust telephone compromising of anti-tamper fixings and flush metal call button. The heavy duty telephone is ideal for placing within Industrial locations and can be mounted to a wall or post.

    Option for Relays

    Up to 2 internal relays are available to the VoIP telephone as standard. The Analogue Version can be customised to include 2 relays upon request. Remote users can enter PIN codes via telephone keypad for remote actions, such as, door / gate open, sound an alarm, switch on a camera / light etc.

    Disable Assistance Fitted Hearing Loop Technology

    Induction Loop Technology optionally fitted on request to assist hard of hearing users.

    Simple to Setup and Maintain

    Remote programming by way of DTMF for Analogue Networks and powered by Analogue Line. The VoIP SIP version is powered by PoE and configured by web interface. The GSM, 3G, 4G Wireless version is powered by 12V mains adaptor and setup remotely by SMS Text. Message Status Reporting also available to a dedicated mobile number (SMS), this is very simple to setup and manage.

    Need a Free Standing or Mounted Option?

    Self-Powering and Free-Standing Options available Option for Rechargeable Battery Powered with external battery box or mounted to a JRTel Pillar or Post. 3G Solar Powered Towers also available, see below for further details.

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Analogue Telephone Network
    Supply Voltage 24 VDC to 65 VDC
    Supply Current 20 mA DC to 100 mA DC
    Ringer Volume 80~90dB(A) at 1m. 110dB(A) at 1m with external horn speaker
    Dialling Method DTMF mode in accordance with ITU-T recommendation Q.23.
    SIP Version
    Power Supply PoE or 12V DC
    Power Consumption Idle:1.5W-Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711A/u, G.7231 high/low, G.729, G.722,G.726
    Echo Cancellation Echo cancellation: Support G.168 and hand-free supports 96ms
    Communication Type Full Duplex
    Ringer volume 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
    3G Version
    Power Supply 12V DC or Rechargeable Battery
    Power Consumption Idle:0.3W - Active: 1.5W
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at a distance of 1m
    Program Method Remote Programming by SMS
    Frequency
    A version: Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    E version Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    J version Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    Smart P2P Intercoms
    Wiring Parallel
    Power Supply 12V DC Mains Adaptor on to 2 pair line
    Ringer Volume 90~95dB(A) at a distance of 1m
    Communication Type Full Duplex or Full Duplex
    Further Information Please contact us directly for further details
    Ambient Conditions
    Protection Type IP66, Conforms to EN60529
    Operating Temperature -25°C to +70°C
    Storage Temperature -25°C to +85°C
