Shatterproof Video Telephone
Versions -SIP Android or Win10 Op.
Model: A-JR213-FK-SIP
Unit Size: 420 x 280 x 52 (mm), Weight: 4 KG Mounting: On-Wall
Call Us: 555-555-1234
Prison Grade Video Telephone
A-JR213-FK-SIP is a video telephone designed to be used in places where vandalism is common. Made from SUS303 stainless steel, watertight to IP65, with a high degree protection against liquid ingress and dust ingress, this telephone can be cleaned using harsh fluids. All external parts, such as the heavy-duty handset, steel armoured cord, chrome keypad and 3mm thick tempered glass touch screen are watertight, vandal resistant and shatterproof (IK7-IK10).
The AJR213-V-2B combines both an attractive modern design and sleek look, with the latest HD video technology that includes optional Android 8 or Windows 10 operating systems. It can be used solely as a vide phone or with addition of an app. based touch screen computer.
Ideal for; Rail & Underground Stations, Hospitals, Stadiums, ships, Universities and Campus, Shopping Malls, Service - Door Opening, External Security etc.
----- Silk Printing and Permanent Vinyl Labels -----
FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.
Simply tell us what you want and we will provide you with the best solution.

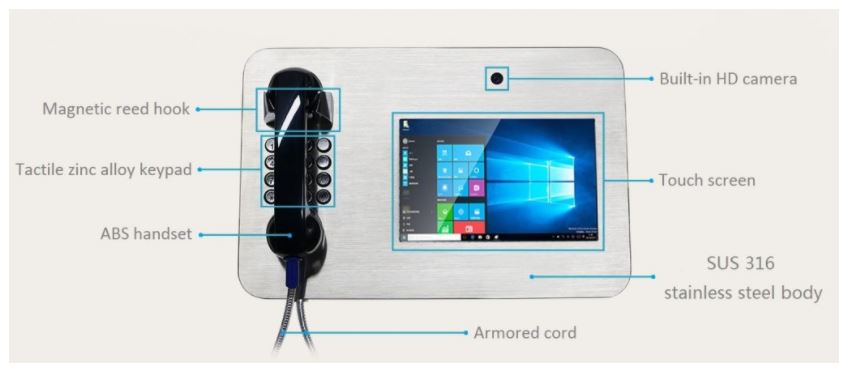

Heavy-Duty Stainless-Steel Video Telephone with Keypad
The telephone is housed within a stainless-steel enclosure and Full duplex, quality echo cancelling microphone Quality clear audio with a loud ringer, adjustable up to 90dB.
Suitable for mounting indoors and outdoors
The weatherproof IP65 and dust ingress protection rating conforms to EN60529, this guarantees a high-level protection against fluids. The weatherproof protection rating and versatile operating temperatures range from -30 to +65 deg., confirms suitability for external installation.
Robust and Vandal Resistant
Housed within sold SUS 316 Stainless-Steel body, a unique robust external telephone, tamper proof throughout, compromising of a heavy-duty ABS constructed handset with steel armoured handset cord, metal chrome keypad, 3mm thick, 10.1" tempered glass touch screen that meets UL60950 (IK7)
Video Phone and App Navigation
Featuring a 1280 x 800, 10.1" HD Touch Screen and 2.0 MP front camera, the telephone is optionally built with either a Windows 10 OS or Android 8.0 operating system. The telephone can be customised to be used solely for video telephone conversations and additionally as a touch screen computer for app. navigation. Other features include x2 USB 3.0, x2 USB, 2.0, x1 HDMI, x1 LAN, x1 VGA (out). Powered PoE, RJ45 (Gigabit) or 12V DC power supply
Disable Assistance Fitted Hearing Loop Technology
Induction Loop Technology optionally fitted on request to assist hard of hearing users. Braille button labels also optionally available
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| SIP Version | |
|---|---|
| Power Supply | PoE or 12Vdc PSU |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711, G.7231 high/low, G.729A/B, G.722 |
| Echo Cancellation | DSP Echo cancellation: Support G.168 and hand-free supports 96ms |
| Communication Type | Full Duplex |
| Ringer volume | 90dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| Ambient Conditions | |
| Protection Type | IP65, Conforms to EN60529 |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -30°C to +75°C |
| Unit Size | 420 *280 *52 (mm) |
| Carton Size | 480 *340 *21 (mm) |
| Net Weight: | 10 KG |
| Gross Weight: | 12 KG |
Windows 10 Specifications
Android 8.0 Specifications
