Public, Industrial and Emergency Telephone Communications

Emergency and Assistance Auto-Dialling Telephone Call Point

On-Wall Mounted - Certified IP65 Watertight & Vandal Resistant

Call Us: 555-555-1234

Airports, Bus Stations, Train Stations, Shopping Centres

Watertight IP65, Vandal Resistant, Non-Corrosive, Camera

Help Points

Versions - 3G 4G GSM / Analogue / VoIP SIP

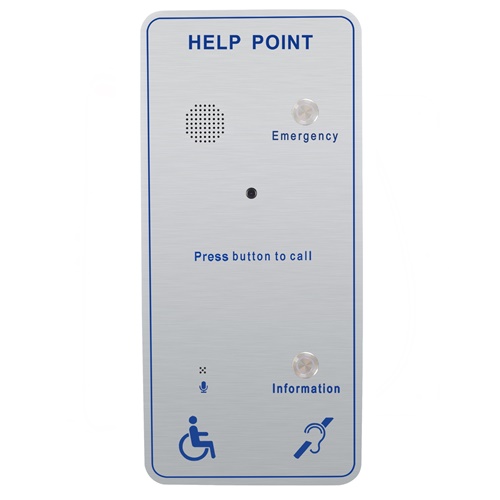

Model: AJR315SC-OW

Unit Size: 650 x 300 x 60 (mm), Weight: 9KG Mounting: Flush On-Wall

  • Two LED Metal Call Button Programmable for PTC Speed Dialling
  • Non-Corrosive Stainless-Steel Body
  • Durable, Robust and Vandal Resistant
  • Weather Protection Rated IP65
  • Powered PoE, Analogue Line or 12v DC Mains
  • Optional IP Camera
  • Inclusive of Hearing Induction Loop
  • Simple Installation with Tamper Proof Fixings
  • Non-Volatile Memory, Programmable for Speed-Dialling
  • Remote programming SMS or DTMF - Version Dependant
  • Remote Status Reporting - 3G GSM Version
  • Choice of Customised Labelling and Etchings
  • RoSH, CE & FCC Compliant - 24 Month Warranty

  • handsfree duel button autodialling emergency and genral assistance help point with camera and induction loop. VoIP, SIP or Analogue or 3G
    general and disabled assistance emergency call point with camera and hearing induction loop
    disability assistance telephone help and infomation point with camera and hearing loop. Vandalproof and weatherproof IP65

    PDF Icon

    emergency and disabled assistance IP65 stainless steel call point with camera and hearling loop

    Request Further Details

    Disability Assistance

    The unique customer friendly IP65 weatherproof assistance call point is designed to meet the needs of disabled customers who suffer from impairments and able customers. With hands-free call buttons & full duplex audio, features include; integrated hearing induction loop, optional braille signage, raised LED (32mm) call buttons and microphone, suitably positioned for ease of use for wheel chair users. The optional internal IP camera provides a secure visual link.

    Ideal for; Hospitals, Airports, Stations, Stadiums, Hotels, Universities & Carparks.

    Disability Assistance

    The unique customer friendly IP65 weatherproof assistance call point is designed to meet the needs of disabled customers who suffer from impairments and able customers. With hands-free call buttons & full duplex audio, features include; integrated hearing induction loop, optional braille signage, raised LED (32mm) call buttons and microphone, suitably positioned for ease of use for wheel chair users. The optional internal IP camera provides a secure visual link.

    Made from stainless-steel with a brushed finish, the design offers increased resistance against vandalism, ensuring communications are always maintained.

    IP65 Weather Resistant

    With an operating temperature range -30 to +70 deg. C, the weatherproof IP65 rating conforms to EN60529, for internal or external application.

    Vandal Proof

     Housed within robust stainless-steel body with anti-vandal LED raised metal call buttons, etched graphics and with tamper-proof fixings.

    24 Months Warranty

    24-months Manufacturer Defect Warranty. Extended warranty available on request.

    Versions

    The 3G version is great for placement where there is no Analogue Telephone Network (PSTN) or VoIP SIP Network. The telephone can be configured and manged remotely through SMS application with a standard 3G Sim Card. The call point is powered by mains through a 12V DC Mains adaptor.

    The Analogue Version is line powered through line (PSTN & PABX) or by DC Mains Supply and Programmed by DTMF (Duel Tone Multi Frequency).

    VoIP SIP Version through PBX and powered by PoE or mains supply and configured on IP connection.

    Compliance

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Analogue Telephone Network
    Dialling  MF (tone)
    Supply Current Drawn from telephone line
     Lightning / Transients Protection to ITU-T k.21 enhanced levels
    Programming Can be programmed as an auto-dial phone
    SIP Version
    Power Supply PoE or 12V - 24V DC
    Port WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX
    LAN: 10/100Base- T RJ-45 for PC, Auto MDIX
    Power Consumption Idle:1.5W/ Active:1.8W
    Communication Type Full Duplex
     Voice Features Echo cancellation: Support G.168 and hands-free can support 96ms
      Supports full duplex
      SIP support SIP domain, SIP authentication (none basic, MD5), DNS name of server
      DTMF:SIP info, DTMF Relay,RFC2833
      Call control features: Flexible dial map, supports hot-line

    Network Features WAN/LAN: support Bridge mode
      Supports static IP address
      Supports DHCP get IP on WAN port
    Supports VLAN
      Supports web config
    Camera
    Video Codec H.264 HP、MPEG4 SP、MJPEG
    Resolution Ratio 1,280*720@20fps、
    Sensitivity 0.5Lux,1.0V/lux-sec (550nm)
    Viewing Angle 135'(H),109'(V)
    Video Compression Output 16Kbps - 2Mbps FPS:10-30fps
    D-Range 71dB(SNR MAX = 42.3dB
    Ambient Conditions
    Protection Type IP65, Conforms to EN60529
    Operating Temperature -30°C to +70°C
    Storage Temperature -40°C to +75°C
    Unit size: 650*300 *60(mm)
    Gross weight 9 KG
    Ringing Tone Shrill warble tone 90 dBA @1 metre
    M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours in use
    •
