The Industrial Emergency Lift-to-Call ATEX Approved Hotline Telephone is IP66 watertight and constructed of strong die-cast alloy, for use in; Petrochemicals, Oil and Gas Platforms, Power Stations, Tunnels, Military, Dockyards, Ships, Chemical Plants, Universities, Production Factories, Oil Refineries, Mines, Power Plants, Generation Facilities, Paint and Varnish Manufacturing Plants,...


II 2G Rx e ib [ib] mb IIC T4 Gb - III 2D Ex ib [ib] tb IIIC T135 ° - Certificated for use in Hazardous areas of Gas Group IIB/IIA - Zone classification: Zone 1, Zone 2 and Zone 22 - Ex ’d’ protected - Intrinsically safe Ex”ib” certified - Temperature classification:T4

ATEX Series

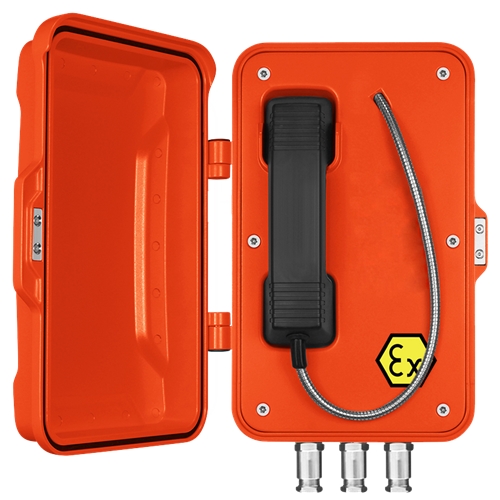

ATEX Approved Weatherproof IP67 Telephone Hotline with Door Enlosure

Versions - Analogue or VoIP SIP

Model: A-JREX101-CB

  • Robust Non-Corrosive Alloy Die Cast Housing
  • IP66 Weather Protection Rated, IK10 Shock Proof
  • Powered PoE or Analogue Line
  • Vandal Resistant Handset with Steel Armoured Cord
  • Simple Installation with Tamper Proof Fixings
  • Non-Volatile Memory
  • 4 Dial-in-Sequence Numbers / Programmable for Speed-Dialling
  • Remote Programming - DTMF or Web Interface
  • Disabled Assistance - Hearing Induction Loop Included
  • Internal Relays Available On-Demand
  • Customised Labelling and Printing
  • IP66, RoSH, CE & FCC Compliant - 24 Month Warranty


  • Robust Waterproof ATEX Hotline Telephone
    Lift to Call, Weatherproof IP66 ATEX Red Autodial Telephone
    Intrinsically Safe Atex approved weatherproof IP66 emergency telephone hotline

    ----- Silk Printing and Permanent Vinyl Labels -----

    FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.

    Simply tell us what you want when you order and we will provide you with the best solution.

    customised printing or permanent logos onto telephones and call points

    ATEX Approved Emergency Hotline

    Available to analogue line or VoIP SIP PoE and programmable for speed dialling 4 number in sequence (VoIP) with a non-volatile memory. The hotlines simple functionality is ideal for emergency and service use. Simply lift handset from the magnetic receiver to autodial the pre-stored number or lift handset to receive inbound call. The standard analogue version dials 1 pre-stored number with a non-volatile memory.

    ATEX Classification

    For explosive gas atmospheres Zone 1 and Zone 2 - II 2G Rx e ib [ib] mb IIC T4 Gb, III 2D Ex ib [ib] tb IIIC T135 °, -40 °C ≤ Ta ≤ +60 °C/+40°C, Zone 1, 2, 22. For explosive atmosphere; IIA, IIB. For dust; Zone 20, Zone 21 and Zone 22.)

    Industrial Standard IP66 Weatherproof Telephone
    ATEX Series Telephones are designed for use in hazardous and demanding environments, the telephone enclosure provides protection from the ingress of dust, dirt and fibres as well as resistance against the harmful and corrosive effects of water spray, rain sleet or snow. Suitable for temperatures between -40 to +60 deg C. The loud ringer with quality clear audio is adjustable up to 95dB (VoIP / SIP) and 80-85 DB (Analogue). Additional external ATEX horn speaker (110DB@1m) and LED flashing beacons can be specified for use within extreme ambient noise zones. The weatherproof IP67 rating conforms to EN60529. IP66 rating is guaranteed when ther door is open, for optimum performance in uncompromising environments. Full duplex, high quality acoustic properties, programmable by DTMF or via web interface (Version Dependent) to ensure optimum locational performance.
    Robust and Vandal Resistant

    Impact protection IK10 in accordance to EN50102, housed within corrosion resistant aluminium alloy die cast enclosure, with NPT conduit entries, a unique external telephone compromising off a robust handset, steel armoured cable and anti-tamper fixings. The rugged telephone is ideal for placing within heavy Industrial and Emergency locations and can be mounted to either a wall, pillar or post (see our range).

    Internal Relay's - Controlled by Operators Telephone Keypad

    Option for two internal relays with the VoIP telephone. The analogue version can be customised to include 2 relays upon request. Enter a PIN code via telephone keypad to open door or gate, sound an alarm, switch on a camera or light etc.

    Disable Assistance Fitted Hearing Loop Technology

    Induction Loop Technology is fitted to the telephone handset as standard to assist hard of hearing users.

    Simple to Setup and Maintain

    Programming by way of DTMF for Analogue Networks and powered by Analogue Line. The VoIP SIP version is powered by PoE and programmed via web interface.

    Choice of Colours

    Industrial high-performance epoxy powder coating in RAL colours. Red as standard, however, other colours are available such as; yellow, blue or orange.

    Need a Free Standing or Mounted Option?

    Free-Standing options available with the ATEX Series Telephones with option for pillar or post mounting.

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Standard Analogue Telephone Line
    Supply Voltage 24 VDC to 65 VDC
    Supply Current 20 mA DC to 100 mA DC
    Ringer Volume 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
    Dialling Method DTMF mode in accordance with ITU-T recommendation Q.23.
    SIP Version
    Power Supply PoE or 12V DC
    Power Consumption Idle:1.5W-Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type Full Duplex
    Ringer volume 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
    Explosion Protection:
    Conforms To II 2G Ex e ib [ib] mb IIC T4 Gb III 2D Ex ib [ib] tb IIIC T135 ° -40 °C ≤ Ta ≤ +60 °C/+40°C Zone 1, 2, 22
    Features
    Casing Material Die cast aluminium, epoxy powder coated.
    Handset With noise cancelling microphone, for effective communication for noisy areas. Armoured SS cord stands up to rough treatment, option for black curly cord.
    Ringing Tone Built-in External Ringer that provides penetrating calling signal (80db - 95A@1meter, version dependant)
    Hook switch Electronic / magnetic with no visible moving parts
    Ambient Conditions
    Lightning / Transients Protection to ITU-T k.21 enhanced levels
    Protection Type IP67, Conforms to EN60529
    Operating Temperature -40°C to +60°C
    M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours in use
    Unit Size: 204 *334 *126(mm)
    Gross Weight 8KG

    Telephone Zone classification: For explosive gas atmospheres; Zone 1 and Zone 2. For explosive atmospheres; IIA, IIB.For dust; Zone 20, Zone 21 and Zone 22. II 2G Rx e ib [ib] mb IIC T4 Gb, III 2D Ex ib [ib] tb IIIC T135 °, Certificated for use in Hazardous areas of Gas Group - IIB/IIA. Ex ’d’ protected, Intrinsically safe Ex”ib” certified.

    what is atex, undertanding atex ex

    IP66 analgoue paxb atex approved zone1 zone 2 autodial emergency telephone Data Sheet Analogue & VoIP SIP
