ATEX Certified LTC Autodial Broadcasting Hotline

ATEX Emergency Telephone, Beacon, Horn and Connection Box


II 2G Rx e ib [ib] mb IIC T4 Gb - III 2D Ex ib [ib] tb IIIC T135 ° - Certificated for use in Hazardous areas of Gas Group IIB/IIA - Zone classification: Zone 1, Zone 2 and Zone 22 - Ex ’d’ protected - Intrinsically safe Ex”ib” certified - Temperature classification:T4

ATEX Series - Broadcasting System

ATEX Approved Weatherproof broadcasting system

Versions - Analogue or VoIP SIP

Model: AJREX103-CB-HB

  • LTC Autodialling - Option for Sequence Calling
  • Choice of Customised Labelling and Printing onto Phone Casing
  • Solid Robust Non-Corrosive Cast Aluminium Housing
  • IP66 Weather Protection Rated, IK10 Shock Proof
  • Option for EX Flashing Beacon, Horn and Junction Box
  • Powered PoE, Analogue Line or 12v DC Mains
  • Vandal Resistant Handset with Steel Armoured Cord
  • Simple Installation with Tamper Proof Fixings
  • Non-volatile Memory, Programmable for Speed-Dialling
  • Remote programming SMS or DTMF - Version Dependant
  • Disabled Assistance - Hearing Induction Loop Included
  • Internal Relays Available On-Demand
  • Four Dial-in-Sequence Numbers On-Demand
  • IP66, RoSH, CE & FCC Compliant - 24 Month Warranty


  • IP67 Weatherproof Industrial Atex  lift to call autodial telephone with broadcasting system beacon and horn
    ATEX Approved Industrial External Ringing Flashing Beacon
    ATEX Approved External Sounder, Horn, Ringer

    ----- Silk Printing and Permanent Vinyl Labels -----

    FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.

    Simply tell us what you want when you order and we will provide you with the best solution.

    customised printing or permanent logos onto telephones and call points


    Broadcasting Features

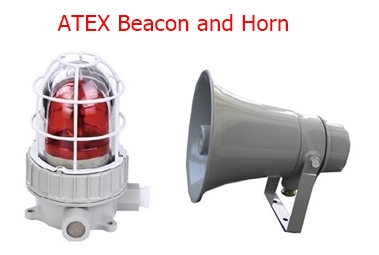

    ATEX Telephone ringing beacon and horn sounder

    Explosion Proof Beacon

  • High Brightness Red LED Long Life
  • High Impact Resistance Tempered Glass Cover
  • IP65 Galvanized Plastic Protection Mask - Durable & Anti-Corrosive
  • Stainless-Steel Exposed Fasteners / Steel Conduit or Cable Wiring

  • Suitable for explosive gas environment Zone 1 and Zone 2 / Suitable for IIA,IIB,IIC explosive gas environment / Suitable for Hazardous dust area: Zone 20, Zone 21, Zone 22. Can be used in the environment of temperature groups T1~T4 / Conforms to: G3B3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079/ Ex-proof Mark: Exd II BT4 Gb, DIP A21 TA, T4

    ATEX Approved Weatherproof broadcasting system

    Explosion Proof Horn

  • Aluminium Cast Body with Fire Proof Stainless-Steel Spool
  • Sound Pressure Typically: 110 dBA @1 metre
  • IP65 Rated, Dimensions: L220*W200*H200

  • The explosion-proof horn meets GB3836.1-2000, GB3836.2-2000. Explosion-proof mark ExdⅡCT6:IP65

    Explosion Proof Connection Box

  • IP65 Cast Aluminium Body
  • Ex-proof Mark: ExeIIBT6
  • Suitable for IIA IIB IIC Anti-explosion Gas Environment
  • Corrosion-proof grade: WF1
  • Dimension 200*200*130(mm)
  • ATEX Junction Conncetion Box Wiring Diagram
    Complete ATEX Weatherproof Broadcasting System

    IP66 rated telephone with optinal external horn sounder, LED flashing call beacon and junction box. The system provides exeptional call alertinging and broadcasting functions within harah noisy industrial environments. The telephone is available in the following models; Analogue, VoIP SIP.

    ATEX Approved Emergency Hotline

    Available to analogue line or VoIP SIP PoE and programmable for speed dialling 4 number in sequence (VoIP) with a non-volatile memory. The hotlines simple functionality is ideal for emergency and service use. Simply lift handset from the magnetic receiver to autodial the pre-stored number or lift handset to receive inbound call. The standard analogue version dials 1 pre-stored number with a non-volatile memory.

    ATEX Classification

    For explosive gas atmospheres Zone 1 and Zone 2 - II 2G Rx e ib [ib] mb IIC T4 Gb, III 2D Ex ib [ib] tb IIIC T135 °, -40 °C ≤ Ta ≤ +60 °C/+40°C, Zone 1, 2, 22. For explosive atmosphere; IIA, IIB. For dust; Zone 20, Zone 21 and Zone 22.)

    IP66 Weatherproof Telephone
    ATEX Series Telephones are designed for use in hazardous and demanding environments, the telephone provides protection from the ingress of dust, dirt and fibres as well as resistance against the harmful and corrosive effects of water spray, rain, sleet or snow. Suitable for temperatures between -40 to +60 deg C. The loud ringer with quality clear audio is adjustable up to 95dB (VoIP / SIP) and 80-85 DB (Analogue). Additional external ATEX horn speaker (110DB@1m) and LED flashing beacons can be specified for use in extreme ambient noise zones. The weatherproof IP66 rating conforms to EN60529, guarantees optimum performance in uncompromising environments. Full duplex, high quality acoustic properties, programmable by DTMF or via web interface (Version Dependent) to ensure optimum locational performance.
    Robust and Vandal Resistant

    Impact protection IK10 in accordance to EN50102, housed within corrosion resistant aluminium alloy die cast, with NPT conduit entries, a unique external telephone compromising off a robust handset, steel armoured cable and anti-tamper fixings. The rugged telephone is ideal for placing within heavy Industrial and Emergency locations and can be mounted to either a wall, pillar or post (see our range).

    Internal Relay's - Controlled by Operators Telephone Keypad

    Option for two internal relays are available to the VoIP telephone. The Analogue Version can be customised to include 2 relays upon request. Remote users can enter PIN codes via telephone keypad for remote actions, such as, door / gate open, sound an alarm, switch on a camera / light etc.

    Disable Assistance Fitted Hearing Loop Technology

    Induction Loop Technology is fitted to the telephone handset as standard to assist hard of hearing users.

    Simple to Setup and Maintain

    Programming by way of DTMF for Analogue Networks and powered by Analogue Line. The VoIP SIP version is powered by PoE and programmed via web interface.

    Choice of Colours

    Industrial high-performance epoxy powder coating in RAL colours. Red as standard, however, other colours are available such as; yellow, blue or orange.

    Need a Free Standing or Mounted Option?

    Free-Standing options available with the ATEX Series Telephones with option for pillar or post mounting.

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Standard Analogue Telephone Line
    Supply Voltage 24 VDC to 65 VDC
    Supply Current 20 mA DC to 100 mA DC
    Ringer Volume 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
    Dialling Method DTMF mode in accordance with ITU-T recommendation Q.23.
    SIP Version
    Power Supply PoE or 12V DC
    Power Consumption Idle:1.5W-Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type Full Duplex
    Ringer volume 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
    Explosion Protection:
    Conforms To II 2G Ex e ib [ib] mb IIC T4 Gb III 2D Ex ib [ib] tb IIIC T135 ° -40 °C ≤ Ta ≤ +60 °C/+40°C Zone 1, 2, 22
    Features
    Casing Material Die cast aluminium, epoxy powder coated.
    Handset With noise cancelling microphone, for effective communication for noisy areas. Armoured SS cord stands up to rough treatment, option for black curly cord.
    Ringing Tone Built-in External Ringer that provides penetrating calling signal (80db - 95A@1meter, version dependant)
    Hook switch Electronic / magnetic with no visible moving parts
    Ambient Conditions
    Lightning / Transients Protection to ITU-T k.21 enhanced levels
    Protection Type IP66, Conforms to EN60529
    Operating Temperature -40°C to +60°C
    M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours in use
    Unit Size: 204 *334 *126(mm)
    Gross Weight 8KG

    Telephone Zone classification: For explosive gas atmospheres; Zone 1 and Zone 2. For explosive atmospheres; IIA, IIB.For dust; Zone 20, Zone 21 and Zone 22. II 2G Rx e ib [ib] mb IIC T4 Gb, III 2D Ex ib [ib] tb IIIC T135 °, Certificated for use in Hazardous areas of Gas Group - IIB/IIA. Ex ’d’ protected, Intrinsically safe Ex”ib” certified.
