Broadcasting Telephones
Versions - Wireless 3G GSM / Analogue / VoIP SIP

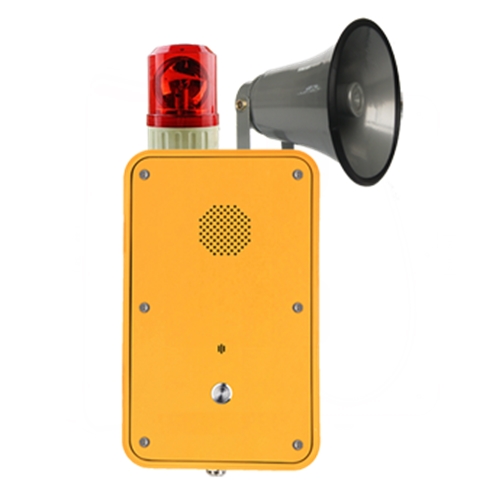

Model: AJR104-SC-HB
Call Us: 555-555-1234
IP66 Watertight, Vandal Resistant, Anti-Corrosive and Rugged
3G GSM, Analogue or VoIP SIP
Broadcasting Features
Loud Ringer and Call Broadcasting
Designed for high noise environments to amplify the general call ringing (up to 110dB / optional 1-9 rings). The horn is an external component wired and powered directly from the telephone, designed for wall mounting. A further feature, on demand, allows the phone to auto-answer the incoming call for announcement over the loudspeaker, the auto-answer feature is adjustable
Optical LED Beacon
The LED beacon begins to flash when the telephone is ringing or in use (optional). The beacon is a separate module, wired and powered directly from the telephone. Option to wall mount at a custom range. Choice of colours; green, amber, blue or red.
----- Silk Printing and Permanent Vinyl Labels -----
FREE Customised Permanent Adhesive Labels and LOW COST Factory Silk Printing.
Simply tell us what you want and we will provide you with the best solution.
Weatherproof Series
Weatherproof, Vandal proof and Reliable, just a few reasons why Weatherproof Series Telephones reach out to a large range of industries requiring service, emergency or backup communications.
Single Button Autodialling Telephone
Available in the following models; Analogue, VoIP SIP, 3G or 4G Wireless (SIM). The telephone is programmable for speed dialling with a non-volatile memory. To receive a call, simply lift magnetic handset off the receiver.
Weatherproof Hands-Free Telephone (IP66 as Standard
Weatherproof Series Telephones for application within a diverse temperatures -25 to +70 deg C. The loud ringer is adjustable up to 95dB (VoIP / GSM) and 80DB (Analogue). Additional external ringers / repeaters and LED flashing beacons for use in extreme ambient noise zones are available. The IP66 Watertight Rating conforms to EN60529, guarantees optimum performance in uncompromising environments, even when the door is open. Full Duplex, High Quality Acoustic Properties, adjustable during installation or remotely; DTMF, Web Interface or Text Message (Version Dependent).
External features designed to alleviate opportunity for vandalism
The circuitry is fully contained within a solid sealed cast aluminium case with vandal proof external features inclusive of anti-tamper screws and metal call button.
Internal Relay's
Up to 2 internal relays are available to the VoIP telephone as standard, however the Analogue Version can be customised to include 2 relays upon request. Remote users can enter PIN codes via telephone keypad for remote actions, such as, door / gate open, sound an alarm, switch on a camera / light etc.
Disable Assistance Fitted Hearing Loop Technology
Induction Loop Technology is fitted to the telephone handset to provide assistance for hard of hearing users.
Simple to Setup and Maintain
Programming by way of DTMF for analogue networks and powered by analogue line. The VoIP SIP version is powered by PoE. 3G or 4G GSM versions are powered by 12V mains adaptor and setup remotely by SMS text. Message status reporting also available to a dedicated mobile number (SMS), this is very simple to setup and manage. Options available to set the maximum call time between 1-250 minutes.
Choice of Colours
Industrial high-performance epoxy powder coating in RAL1023 yellow as standard. Other RAL colours are available up-on request.
Need a Free-Standing or Mounted Option?
Self-Powering and Free-Standing options available. Option for 30-60 day rechargeable battery powered with external battery box or mounted to a JRTel Pillar or Post. 3G Solar Powered Towers also available
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Analogue Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 90dB(A) at 1m. 110dB(A) at 1m with external horn speaker |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | Idle:1.5W-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711A/u, G.7231 high/low, G.729, G.722,G.726 |
| Echo Cancellation | Echo cancellation: Support G.168 and hand-free supports 96ms |
| Communication Type | Full Duplex |
| Ringer volume | 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC or Rechargeable Battery |
| Power Consumption | Idle:0.3W - Active: 1.5W |
| Communication Type | Full Duplex |
| Ringer Volume | 90~95dB(A) at a distance of 1m |
| Program Method | Remote Programming by SMS |
| Frequency | |
| A version: | Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| E version | Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| J version | Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient Conditions | |
| Protection Type | IP66, Conforms to EN60529 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Unit Size: | 204 *334 *74((mm) |
| Gross Weight | 5KG |
