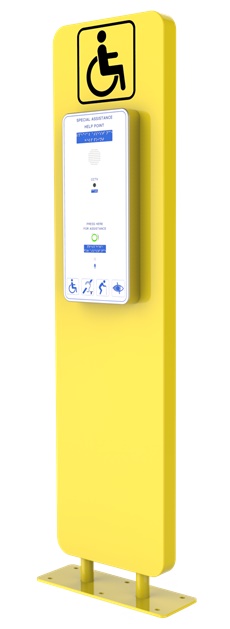

Floor Mounted Assistance Call Point
Specialist Disability Assistance
Model: AJR315-SCSP

The LED call buttons are uniquely placed with a microphone for low accessibility of wheel chairs users, with option for an integrated hearing induction loop for hard of hearing customers. Option for Braille and integrated wide angled camera - providing a secure 24/7 live link.
With an operating temperature range -30 to +70 deg. C, the weatherproof IP65 rating conforms to EN60529, for internal or external application.
Housed within robust stainless-steel body with anti-vandal LED red and green metal call buttons, etched graphics and with tamper-proof fixings. The stand body is made from thick rolled steel, designed to withstand vandalism.
Option to fit directly into the ground with four foundation or expansion bolts (not supplied). The frame is supplied with four bolt holes pre-drilled into the base bracket.
The call point is supplied as standard with a brushed stainless-steel finish and stand painted blue, however, options also available for red, yellow or grey. Option to silk print onto the body of the call point
24-months Manufacturer Defect Warranty. Extended warranty available on request.
The 3G version is great for placement where there is no Analogue Telephone Network (PSTN) or VoIP SIP Network. The telephone can be configured and manged remotely through SMS application with a standard 3G Sim Card. The call point is powered by mains through a 12V DC Mains adaptor.
The Analogue Version is line powered through line (PSTN & PABX) or by DC Mains Supply and Programmed by DTMF (Duel Tone Multi Frequency).
VoIP SIP Version through PBX and powered by PoE or mains supply and configured on IP connection.
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
Analogue Version | |
---|---|
Power Supply | Analogue Telephone Network |
Dialling | MF (tone) |
Supply Current | Drawn from telephone line |
Lightning / Transients | Protection to ITU-T k.21 enhanced levels |
Programming | Can be programmed as an auto-dial phone |
SIP Version | |
Power Supply | PoE or 12V - 24V DC |
Port | WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX |
LAN: 10/100Base- T RJ-45 for PC, Auto MDIX |
|
Power Consumption | Idle:1.5W/ Active:1.8W |
Communication Type | Full Duplex |
Voice Features | Echo cancellation: Support G.168 and hands-free can support 96ms |
Supports full duplex | |
SIP support SIP domain, SIP authentication (none basic, MD5), DNS name of server | |
DTMF:SIP info, DTMF Relay,RFC2833 | |
Call control features: Flexible dial map, supports hot-line | |
Network Features | WAN/LAN: support Bridge mode |
Supports static IP address | |
Supports DHCP get IP on WAN port | |
Supports VLAN | |
Supports web config | |
Camera | |
Video Codec | H.264 HP、MPEG4 SP、MJPEG |
Resolution Ratio | 1,280*720@20fps、 |
Sensitivity | 0.5Lux,1.0V/lux-sec (550nm) |
Viewing Angle | 135'(H),109'(V) |
Video Compression Output | 16Kbps - 2Mbps FPS:10-30fps |
D-Range | 71dB(SNR MAX = 42.3dB |
Ambient Conditions | |
Protection Type | IP65, Conforms to EN60529 |
Operating Temperature | -30°C to +70°C |
Storage Temperature | -40°C to +75°C |
Unit size: | 1800*300 *60(mm) |
Gross weight | 50 KG |
Ringing Tone | Shrill warble tone 90 dBA @1 metre |
M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours in use |
Hi-Visibility internal and external Solar Towers, Telephone Pillars and Posts for Emergency, SOS, Public & Disability Assistance. Robust telephones and structures, offering full protection against extreme weather conditions and vandalism. Call Points with Hearing Induction Loops, Braille Writing, Wheel Chairs Friendly Access and Cameras for Security / BSL assistance. IP66-IP67 weatherproof, designed for Industrial application and with simple installation and low maintenance.
