ATEX IECEx Autodial Telephone
Versions - Analogue or VoIP SIP
Model: A-JREX106-CB
Call Us: 555-555-1234

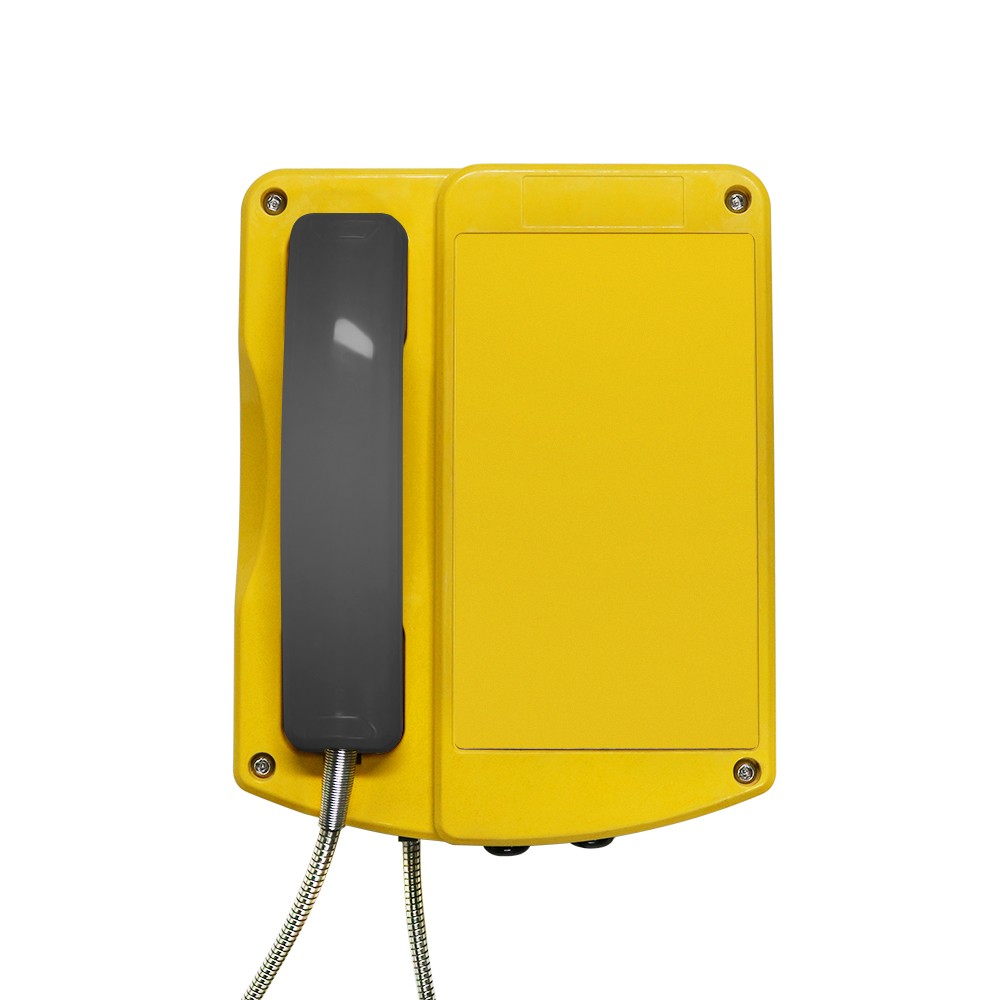

The telephones sets were developed for, but not limited to, emercency or direct operation in the petrochemical industry, usually used in production, transportation and refining of oil and natural gas. Made from impact and shock resistant, corrosion resistant material and certified IP66 watertight, the A-JREX106-vb telephone is sufficient for wall, column or post mounting both indoors and outdoors.
Choice of telephone versions: analogue, driven by analogue line or SIP VoIP, powered PoE (or 12Vdc).
EX and IECEx Zone 1 & 2, Explosion Proof Telephone
II 2G Ex e ib [ib] mb IIC T4 Gb II 2D Ex ib [ib] tb IIIC T135 °Db -40 °C ≤ Ta ≤ +60 °C/+40°C Zone 1, 2, 22
For Zone 1,Zone 2 and 22 - II 2G Ex e ib [ib] mb IIC T6 Gb II 2D Ex ib [ib] tb IIIC T135 °Db -40 °C ≤ Ta ≤ +60 °C/+40°C Zone 1, 2, 22
ATEX and IECEX Series Telephones are designed to provide safe, reliable communication in hazardous areas. the IP66 rating and impact and shock-resistant GRP hosing with urethane coated keypad provides full protection from the ingress of dust, dirt and fibres, harmful and corrosive effects of water spray, rain, sleet or snow, acids, alkali and lubricants. For temperatures ranging between -45 to +75 deg C. The weatherproof IP66 rating conforms to EN60529, guarantees optimum performance in uncompromising environments.
The loud ringer with quality clear audio is adjustable up to 95dB (VoIP / SIP) and 80-85 DB (Analogue). Additional external ATEX horn speaker (110DB@1m) and LED flashing beacons are available for use in noisy zones. The telephones are programmable by DTMF or via web interface (Version Dependent).
High impact glass fibre-reinforced polyester industrial housing and ergonomic heavy-duty design, with NPT conduit entries, a unique external telephone compromising off a robust handset and magnetic reed hook switch to reduce parts subject to wear, with a steel armoured cable and anti-tamper fixings. The rugged telephone is ideal for installation within heavy industrial and locations and can be mounted to either a wall, pillar or post (see our range).
Large urethane coated watertight metal corrosion resistant keypad with 20 keys, Numbers 0-9 with optional auto speed-dial (on demand), "LR" button for last number redial, "R" for flash recall and "M" for muting.
Programmable for speed dialling with a non-volatile memory. The hotlines simple functionality is ideal for emergency and service use. Simply lift handset from the magnetic receiver to autodial the pre-stored number or lift handset to receive inbound call.
Option for two internal relays with the VoIP telephone. The analogue version can be customised to include 2 relays upon request. Enter a PIN code via telephone keypad to open door or gate, sound an alarm, switch on a camera or light etc.
Induction Loop Technology is fitted to the telephone handset as standard to assist hard of hearing users.
Programming by way of DTMF for Analogue Networks and powered by Analogue Line. The VoIP SIP version is powered by PoE and programmed via web interface.
Standard yellow colour, other colours available on demand
Free-Standing options available with the ATEX Series Telephones with option for pillar or post mounting.
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Standard Analogue Telephone Line |
| Supply Voltage | 24 VDC to 66 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 90dB(A) at 1m. 110dB(A) at 1m with external horn speaker |
| Dialling Method | Lightning / Transients |
| SIP Version | |
| Power Supply | Power over Ethernet according to IEEE 802.3af over spare cable pair or external supply, 12V DC |
| Power Consumption | 2.5 W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full Duplex |
| Ringer volume | 95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| Explosion Protection: | |
| Conforms To | II 2G Ex e ib [ib] mb IIC T4 Gb II 2D Ex ib [ib] tb IIIC T135° Db -40°C ≤ Ta ≤ +60 °C/+40°C Zone 1, 2, 22 |
| Features | |
| Casing Material | High Impact Glass fibre-reinforced polyeste |
| Handset | With noise cancelling microphone, for effective communication for noisy areas. Armoured SS cord stands up to rough treatment. |
| Keypad (model: A-JREX106) | Urethane coated watertight metal keypad Weather resistant 20 button Keypad, No.of keys:0-9, *, #, Redial, Mute, Last Number Redial |
| Ringing Tone | Built-in External Ringer that provides penetrating calling signal (80db - 95A@1meter, version dependant) |
| Hook switch | Magnetic reed hook with no visible moving parts |
| Ambient Conditions | |
| Lightning / Transients | Protection to ITU-T k.21 enhanced levels |
| Protection Type | IP66, Conforms to EN60529 |
| Operating Temperature | -45°C to +75°C |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours in use |
| Unit Size: | 204 *334 *126(mm) |
| Gross Weight | 7.5KG |
